ASA 0176AA47CC CC COOLER 230/400V 50Hz AC 30LPM
ASA 0176AA47CC CC COOLER 230/400V 50Hz AC 30LPM
Low stock: 1 left
PRICE EXCL. VAT
- Worldwide shipping via trusted and reliable couriers.
- Huge savings against OEM parts.
- Need assistance? Contact our expert sales team.
Couldn't load pickup availability

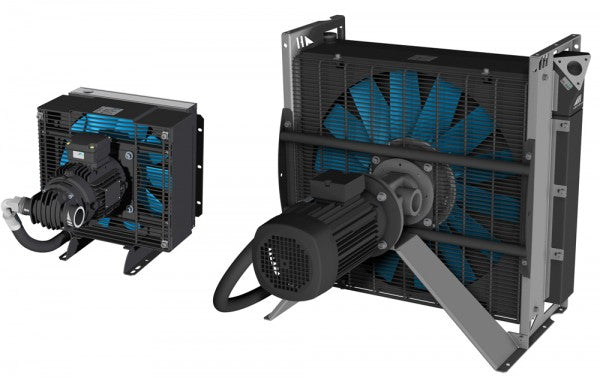

Oil/air offline cooler - CC 230/400V 50Hz AC
The oil / air coolers of our CC series are autonomous cooling systems with an integrated circulation pump. They work as a separate cooling unit or as a filter cooling unit with an adequate filter. The benefits of such circulation coolers are a constant cooling performance and a higher durability, because there are no pressure vibrations or peaks in the cooler unit.
Conditions of use: Maximum oil temperature: 100°C, maximum air temperature: 50°C. Motors can be used up to an altitude of 1.500m.
For other conditions of use please contact our engineers.

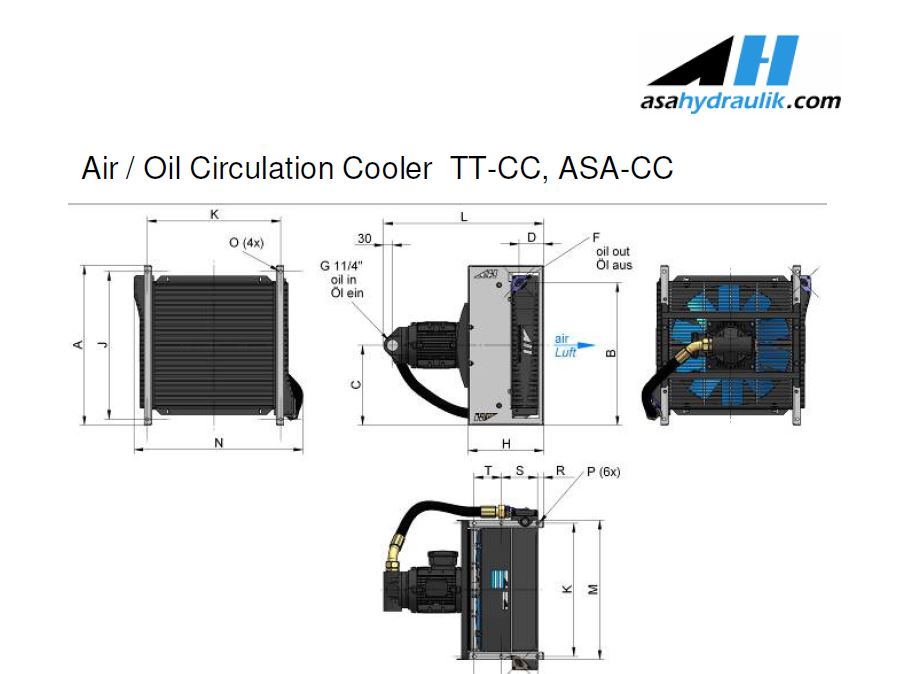

Noise level: Noise levels are measured in accordance with 2006/42/EC and EN ISO 3744. Dimensions: General tolerance according to DIN 2768-v
