Parker Hannifin

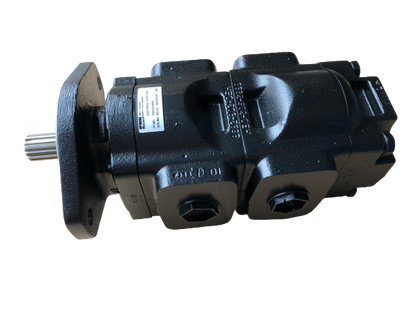

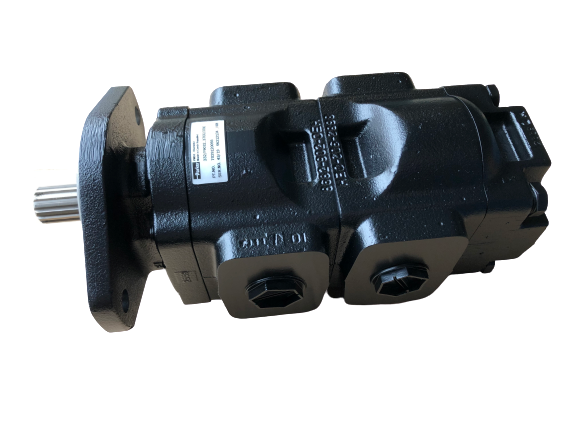

20/925579 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV

20/925579 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV

50 in stock

Regular price $1,302.83 CAD
Regular price $2,785.10 CAD Sale price $1,302.83 CAD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925339 - 20/925579 - 332/F9029

Weight

  • 26KG

Machine Fitment

  • PUMP 36/26 CCR MAIN HYDRAULIC 92 & 100 HP BUILDS 3CX-T 92 and 100hp 9812/0010
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CXSM MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953997 3CX SUPER MAN Sideshift 9802/9800
  • PUMP 36/26 CCR MAIN HYDRAULIC - LAT-AM 90 HP BUILDS M1348037 214e/3C 14 Centremount Economy "e" 9812/0010
