Parker Hannifin

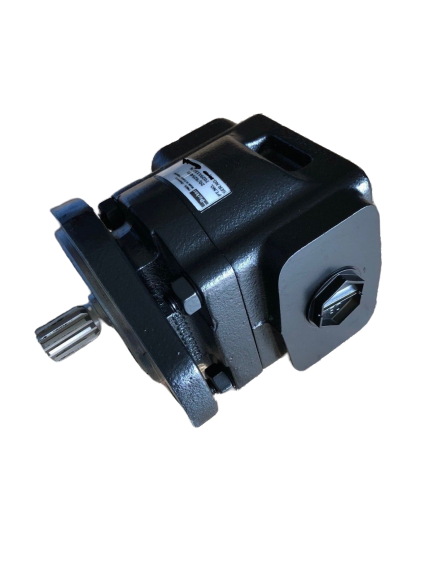

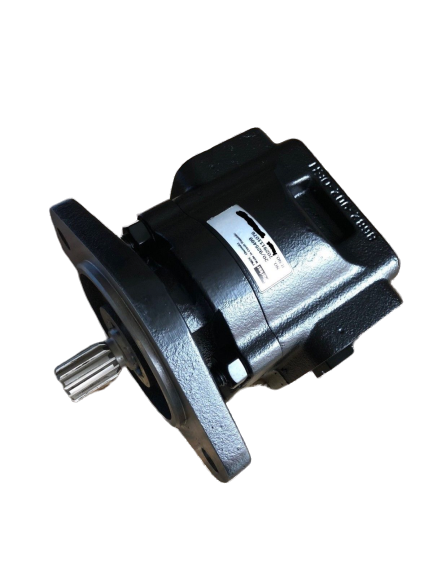

20/925499 Genuine Parker / JCB 524_527 Hydraulic Pump 37 CC/REV

20/925499 Genuine Parker / JCB 524_527 Hydraulic Pump 37 CC/REV

7 in stock

Regular price $745.81 CAD
Regular price $1,612.13 CAD Sale price $745.81 CAD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

Key Information

  • Rotation: Clockwise (looking from shaft end)

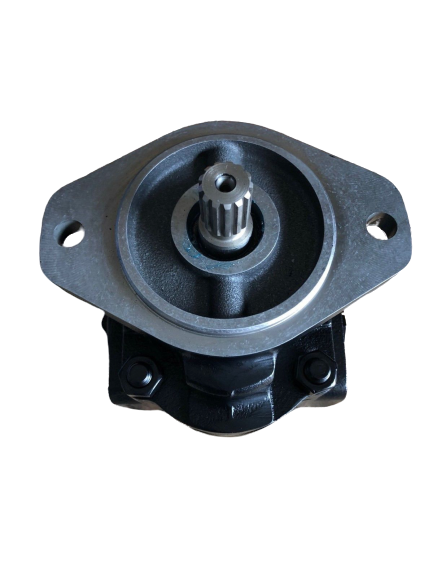

  • 7/8” Diameter 13T SAE B splined shaft
  • SAE B 2 hole mounting flange
  • Pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • 1 7/8" UNF threaded inlet
  • Pump outlet: 1 1/16”-12 UNF threaded

Replaces the following JCB part numbers

  • 20/925499

Weight

  • 13KG

Machine Fitment

  • PUMP MAIN HYDRAULIC 524-50M MILITARY 9812/7220
  • PUMP,MAIN HYDRAULIC INSTALLATION 527-55 9802/7220
  • PUMP MAIN HYDRAULIC 524-50 Tier 2 9812/7210
  • PUMP MAIN HYDRAULIC 527-55STier 2 9812/7210
  • PUMP,MAIN HYDRAULIC INSTALLATION 527-55S 9802/7220
  • PUMP,MAIN HYDRAULIC INSTALLATION 524-50 9802/7220
  • PUMP MAIN HYDRAULIC 527-55 Tier 2 9812/7210
  • PUMP,GEAR 527-55 Tier 2 9812/7210
  • PUMP,GEAR 527-55 9802/7220
  • PUMP,GEAR 524-50 9802/7220
  • PUMP,GEAR 527-55S Tier 2 9812/7210
  • PUMP,GEAR . 524-50M MILITARY 9812/7220
  • PUMP,GEAR 524-50 Tier 2 9812/7210
