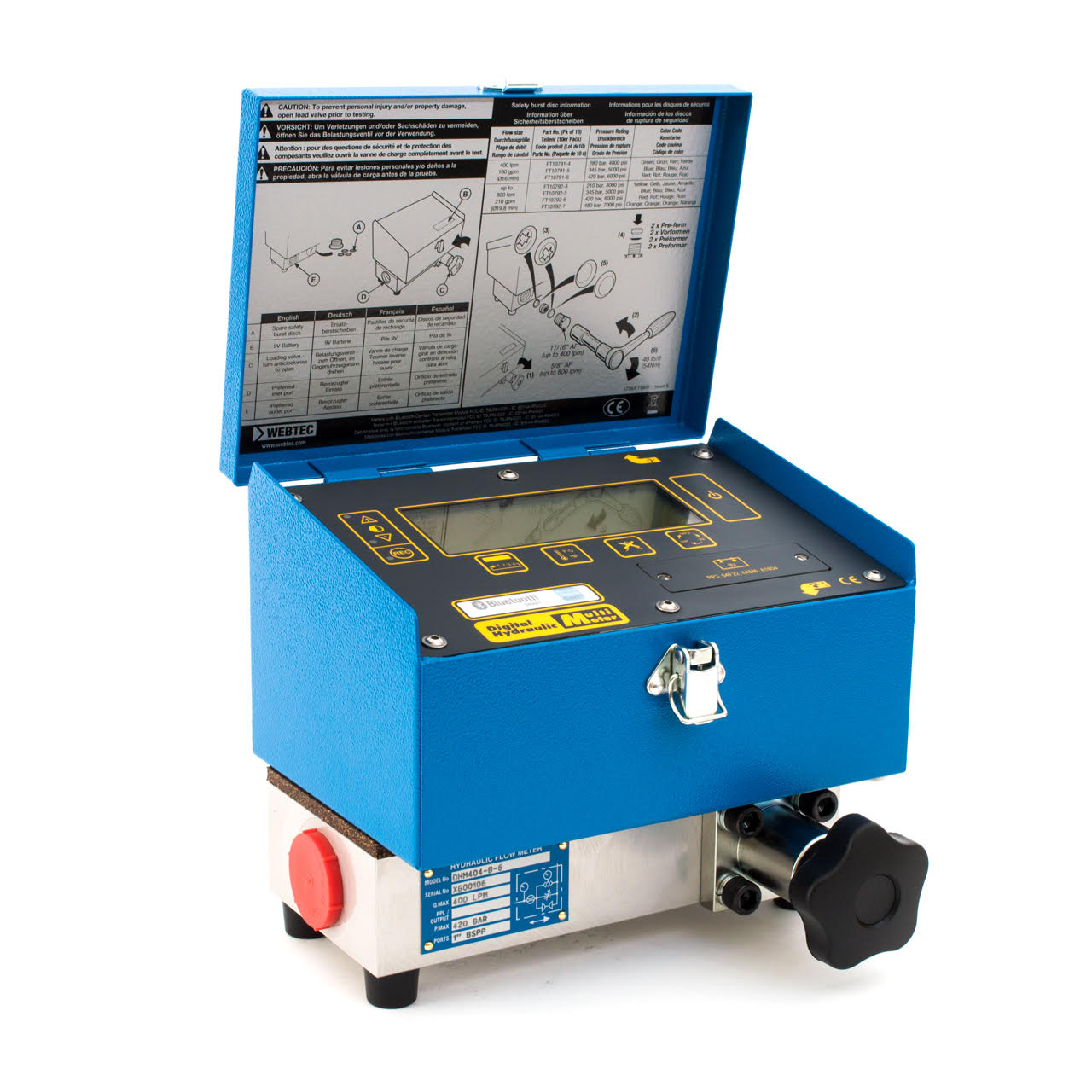

Webtec DHM804- S-7-L Digital Hydraulic Multimeter Unit 1-7/8” - 12UN Ports

Webtec DHM804- S-7-L Digital Hydraulic Multimeter Unit 1-7/8” - 12UN Ports

Low stock: 3 left

$7,765.30 CAD
$9,416.73 CAD $7,765.30 CAD
Sale Sold out

PRICE EXCL. VAT

  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

DESCRIPTION

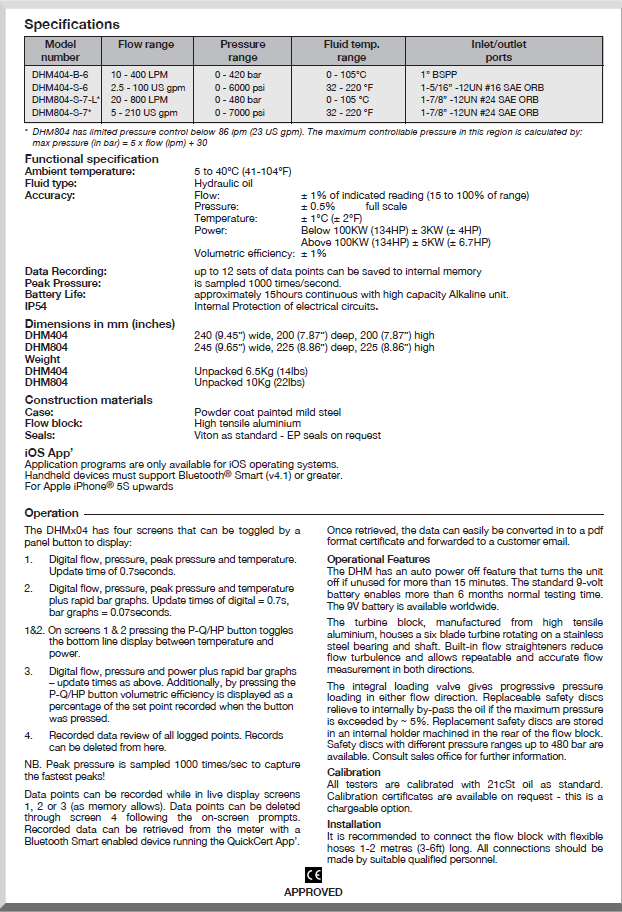

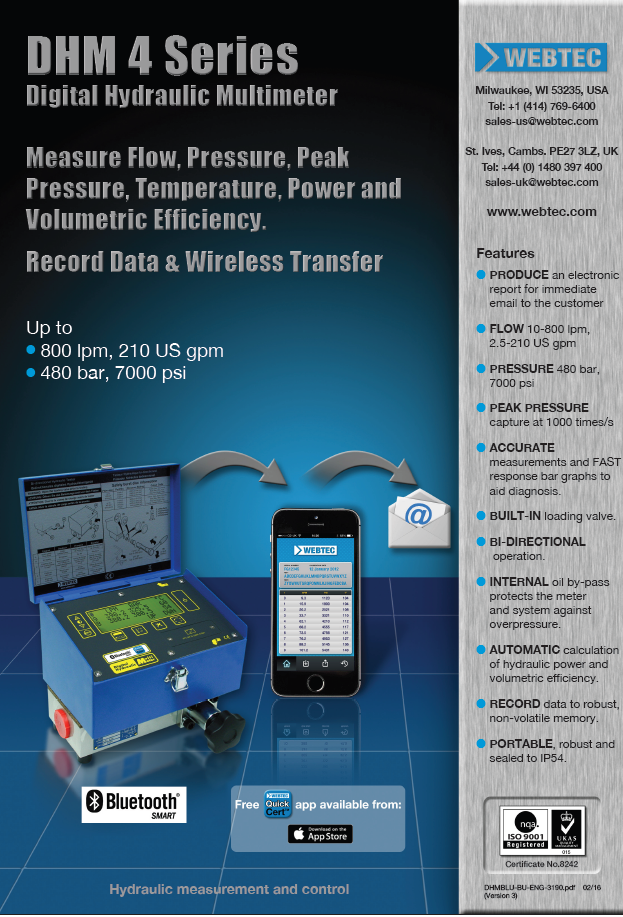

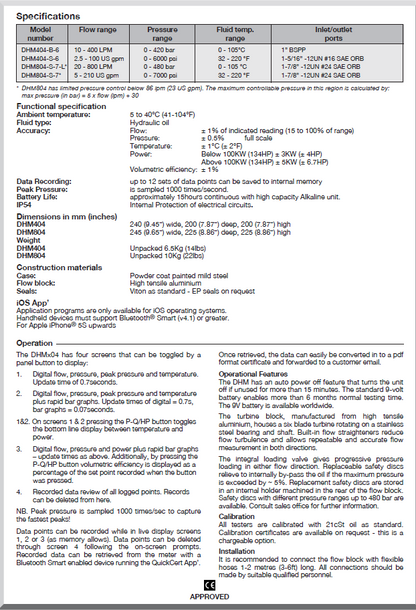

The new DHM series measures flow, pressure, peak pressure, temperature, power and volumetric efficiency. Features QuickCert™ data record, wireless transfer and certificate creation.

  • Produce an electronic report for immediate email to the customer
  • Flow: 210 US gpm (800 lpm)
  • Pressure: 7000 psi (480 bar)
  • Accurate measurements and FAST response bar graphs to aid diagnosis.
  • Automatic calculation of hydraulic power and volumetric efficiency.
  • Record data to robust, non-volatile memory.

Interpass™ internal oil by-pass protects the hydraulic tester against overpressure.
