David Brown

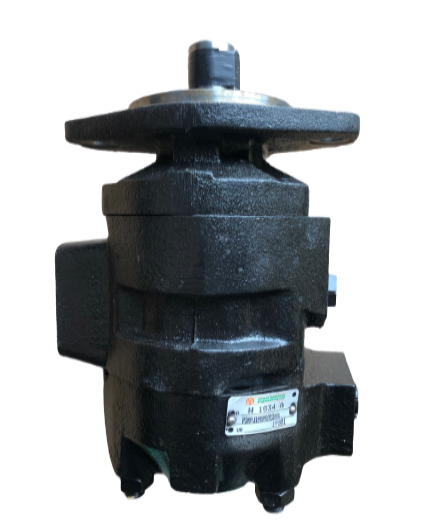

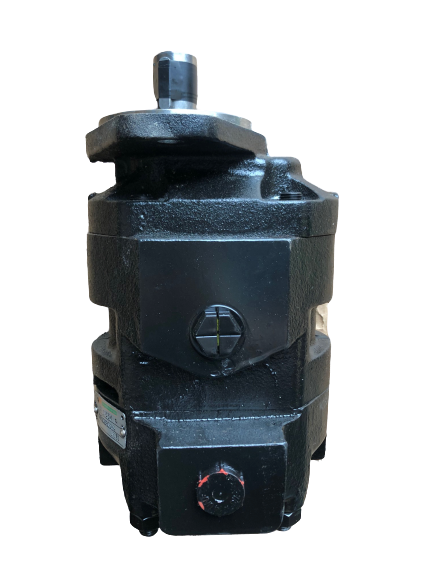

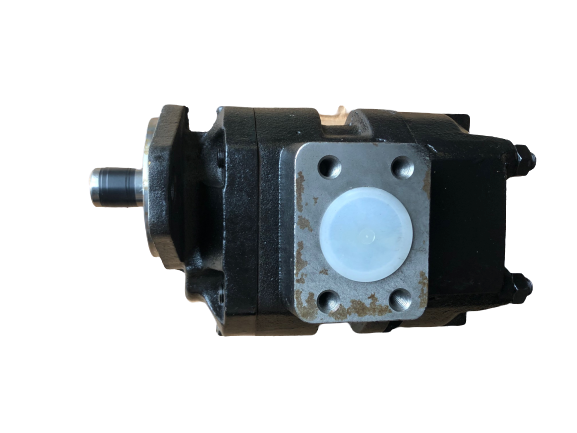

919/71700 JCB Twin Hydraulic Pump
919/71700 JCB Twin Hydraulic Pump
Low stock: 2 left
PRICE EXCL. VAT
- Worldwide shipping via trusted and reliable couriers.
- Huge savings against OEM parts.
- Need assistance? Contact our expert sales team.
Couldn't load pickup availability
- Rotation: Counter-Clockwise (looking from shaft end)
- 1.125"” Diameter parallel keyed shaft (28.8mm)
- SAE B 2 hole mounting flange
- Front pump displacement: 41 cc/rev (33L/Min per 1000 rpm)
- Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Combined 2” SAE flange inlet
- Front pump outlet: 3/4" BSPP threaded
- Rear pump outlet: 5/8" BSPP threaded
- Maximum working pressure on front pump: 240 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 325 Nm
Replaces the following JCB part numbers
- 919/66700 - 919/66800 - 919/66900
- 919/71400 - 919/71500 - 919/71700
Weight
- 31KG
Machine Fitment
- PUMP, MAIN HYDRAULIC CODE 4072 M 3CX (CM) Centremount AA AB Engine 9802/9720
- PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC M410964 4C 30 9802/9600
- PUMP, MAIN HYDRAULIC M410964 3CXT 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410964 4C 35 9802/9600
- PUMP, MAIN HYDRAULIC M410964 4CN 30 9802/9600
- PUMP, MAIN HYDRAULIC 4CN 9802/9700
- PUMP, MAIN HYDRAULIC 3CX 9802/9700
- PUMP, MAIN HYDRAULIC M410964 3CXHMT 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410964 3CXSMT 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC 4C 9802/9700
- PUMP, MAIN HYDRAULIC M410964 3CXT 20 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410964 3CXHMT 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410964 4CN 35 9802/9600
- PUMP, MAIN HYDRAULIC M410964 3CXSMT 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC 3CX4M Military Sideshift 9802/9709
- PUMP, MAIN HYDRAULIC M410964 3CXT 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
- PUMP, MAIN HYDRAULIC M410964 3CXSMT 20 Sideshift 9802/9600
