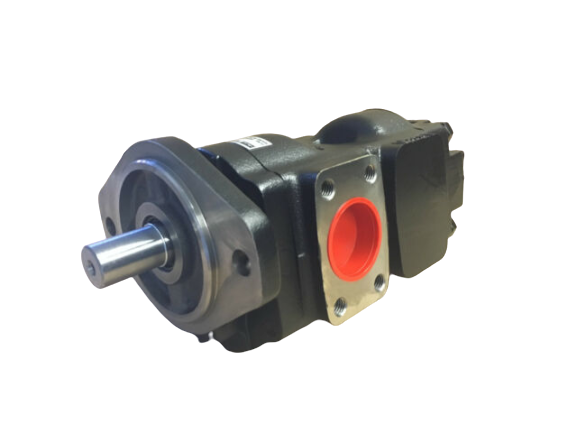

Key Information
- Rotation: Counter-Clockwise (looking from shaft end)
- 1” Diameter parallel keyed shaft
- SAE B 2 hole mounting flange
- Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
- Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Combined 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 275 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 325 Nm
Replaces the following JCB part numbers
- 20/902900 - 20/903100 - 20/912800 - 7470 - 4070 - 4072 - 332/G6350 - 400/E0868
Weight
Machine Fitment
- PUMP, MAIN HYDRAULIC CODE 4072 M 3CX (CM) Centremount AA AB Engine 9802/9720
- PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CXSM Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX CONTRACTOR Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC CODE 4072 GEAR PUMP 3CX444 SUPER Sideshift AA AB Engine 9802/9730
- PUMP, MAIN HYDRAULIC M410964 4C 30 9802/9600
- PUMP, MAIN HYDRAULIC M410964 3CXT 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410964 4C 35 9802/9600
- PUMP, MAIN HYDRAULIC M410964 4CN 30 9802/9600
- PUMP, MAIN HYDRAULIC 4CN 9802/9700
- PUMP, MAIN HYDRAULIC 3CX 9802/9700
- PUMP, MAIN HYDRAULIC M410964 3CXHMT 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410964 3CXSMT 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC 4C 9802/9700
- PUMP, MAIN HYDRAULIC M410964 3CXT 20 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410964 3CXHMT 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC M410964 4CN 35 9802/9600
- PUMP, MAIN HYDRAULIC M410964 3CXSMT 30 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC 3CX4M Military Sideshift 9802/9709
- PUMP, MAIN HYDRAULIC M410964 3CXT 35 Sideshift 9802/9600
- PUMP, MAIN HYDRAULIC 3CXSM 9802/9700
- PUMP, MAIN HYDRAULIC M410964 3CXSMT 20 Sideshift 9802/9600
