Parker Hannifin

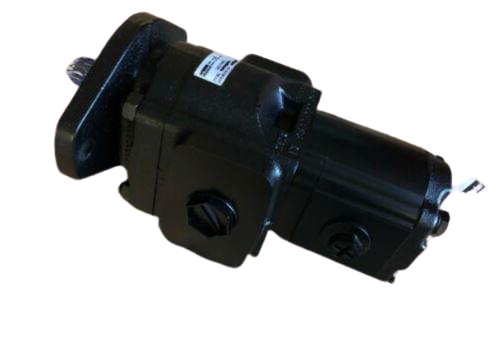

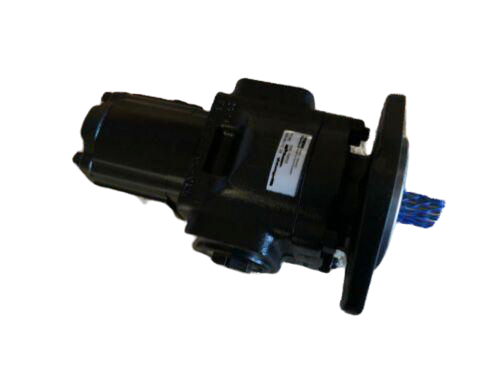

332/T4833 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 37 + 16 CC/REV

332/T4833 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 37 + 16 CC/REV

Low stock: 4 left

Regular price $1,174.65 CAD
Regular price $2,217.40 CAD Sale price $1,174.65 CAD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

Key Information

  • Rotation: Clockwise (looking from shaft end)
  • 7/8” Diameter 13T SAE B splined shaft
  • SAE B 2 hole mounting flange
  • Front Pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)
  • 1 7/8" UNF threaded inlet
  • Front pump 1 1/16" UNF threaded outlet
  • Rear pump 7/8" UNF threaded outlet

Replaces the following JCB part numbers

  • 332/T4833

Weight

  • 16KG

Machine Fitment

  • TOW HITCH HYDRAULIC CIRCUIT 527-55 TIER 3 9812/7560
  • TOW HITCH HYDRAULIC CIRCUIT 524-50 TIER 3 9812/7560
  • TOW HITCH MANUAL CIRCUIT 524-50 TIER 3 9812/7560
  • TOW HITCH MANUAL CIRCUIT 527-55 TIER 3 9812/7560
  • PUMP MAIN HYDRAULIC 527-55 TIER 3 9812/7560
  • PUMP MAIN HYDRAULIC 524-50 TIER 3 9812/7560
  • PUMP,GEAR 527-55 TIER 3 9812/7560
  • PUMP,GEAR 524-50 TIER 3 9812/7560
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMPS GEAR 2 STAGE, 37 AND 16CC, 524-50, 527-55 527-55 4WS 9822/0425
  • PUMP/MOTOR INSTALLATION ASSEMBLIES PUMPS GEAR 2 STAGE, 37 AND 16CC, 524-50, 527-55 524-50 4WS 9822/0425
