Parker Hannifin

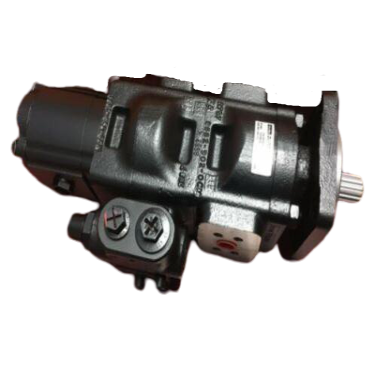

20/925613 Genuine Parker / JCB Loadall Triple Hydraulic Pump 40 + 33+ 16 CC/REV ( PLEASE USE 20/925732)

20/925613 Genuine Parker / JCB Loadall Triple Hydraulic Pump 40 + 33+ 16 CC/REV ( PLEASE USE 20/925732)

9 in stock

Regular price $2,310.48 CAD
Regular price $4,173.20 CAD Sale price $2,310.48 CAD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

Key Information

  • Rotation: Counter -Clockwise (looking from shaft end)
  • 1” Diameter 15T SAE B-B splined shaft
  • SAE B 4 hole mounting flange
  • Front Pump displacement: 36 cc/rev (40L/Min per 1000 rpm)
  • Middle Pump displacement: 19 cc/rev (33L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)

Replaces the following JCB part numbers

    • 20/925613 7029530010
    • Note - no stock Please use 20/925732 Upgraded pump (PGP640 on front)
    • Additional parts needed 335/11583 x 1, 830/13181 x 1, 331/48346 x 1.

Weight

  • 38KG

Machine Fitment

  • MAIN HYDRAULIC M1004395 540 FS PLUS 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 530 SUPER AG 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 533-105 9802/7880
  • PUMP, MAIN HYDRAULIC M1004395 540S XL 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 530S XL 9802/7960
  • PUMP, MAIN HYDRAULIC M1004395 540 SUPER AG 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 535-95 9802/7880
  • PUMP, MAIN HYDRAULIC M1004395 530 FS PLUS 9802/7960
  • PUMP (THREE STAGE) MAIN HYDRAULICS 09/06/2002 535-95 SWAY 9802/7880
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 SWAY 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 LE SWAY 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530S 9802/7850
  • PUMP,MAIN HYDRAULIC M771430 M774004 530 LE 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 LE 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540S 9802/7850
  • PUMP,MAIN HYDRAULIC M771024 M774004 540 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530 LE 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 540 LE SWAY 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 530S 9802/7850
  • PUMP, MAIN HYDRAULIC M774005 M1004395 540S 9802/7850
