Parker Hannifin

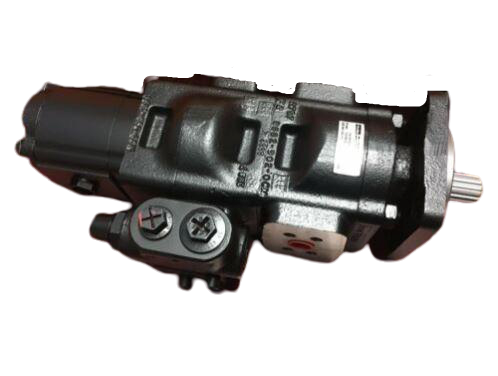

20/925588 Genuine Parker / JCB Loadall Triple Hydraulic Pump 29 + 19 + 16 CC/REV

20/925588 Genuine Parker / JCB Loadall Triple Hydraulic Pump 29 + 19 + 16 CC/REV

11 in stock

Regular price $1,897.84 CAD
Regular price $4,127.33 CAD Sale price $1,897.84 CAD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

Key Information

  • Rotation: Counter -Clockwise (looking from shaft end)
  • 1” Diameter 15T SAE B-B splined shaft
  • SAE B 4 hole mounting flange
  • Front Pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
  • Middle Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)

Replaces the following JCB part numbers

  • 20/925588 - 8965C -20/918500

Weight

  • 38KG

Machine Fitment

  • PUMP,MAIN HYDRAULIC .535-125 HiViZ Tier 2 9812/7100
  • PUMP,MAIN HYDRAULIC .540-140 TIER 3 9812/7650
  • PUMP,MAIN HYDRAULIC 535-125 Tier 2 9812/7040
  • PUMP,MAIN HYDRAULIC 535-140 HiViZ Tier 2 9812/7100
  • PUMP,MAIN HYDRAULIC 540-140 Tier 2 9812/7040
  • PUMP,THREE STAGE MAIN HYDRAULICS 110 L/MIN 536-60 9812/7150
  • PUMP MAIN HYDRAULIC (THREE STAGE, 110L/MIN) 535-140 HiViZ DIESELMAX ENGINE 9812/7400
  • PUMP,MAIN HYDRAULIC 535-140 Tier 2 9812/7040
  • PUMP MAIN HYDRAULIC (THREE STAGE, 110L/MIN) 535-125 HiViZ DIESELMAX ENGINE 9812/7400
  • PUMP,MAIN HYDRAULIC .535-140 HiViZ Tier 2 9812/7100
  • PUMP,MAIN HYDRAULIC 535-125 HiViZ Tier 2 9812/7100
  • PUMP MAIN HYDRAULIC (THREE STAGE, 110L/MIN) .535-140 HiViZ DIESELMAX ENGINE 9812/7400
  • PUMP,MAIN HYDRAULIC 540-140 TIER 3 9812/7650
  • PUMP,MAIN HYDRAULIC 550-140 9812/7450
  • PUMP,THREE STAGE MAIN HYDRAULICS 110 L/MIN 536-60 TIER 2 9812/7070
  • PUMP MAIN HYDRAULIC (THREE STAGE, 110L/MIN) .535-125 HiViZ DIESELMAX ENGINE 9812/7400
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 531-70 TIER 2 9812/7060
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 541-70 TIER 2 9812/7060
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 531-70 SWAY TIER 2 9812/7060
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 536-70 9812/7075
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 541-70 Tier 3 9812/7300
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN .536-70 9812/7075
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 535-95 Tier 2 9812/7000
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 541-70 SWAY TIER 2 9812/7060
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 531-70 Tier 3 9812/7300
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 110 L/MIN 535-95 SWAY Tier 2 9812/7000
  • PUMP,(THREE STAGE) MAIN HYDRAULICS FITTINGS & MOUNTINGS (110 L/MIN) 536-60 TIER 2 9812/7070
  • PUMP FITTINGS & MOUNTINGS (THREE STAGE, 110L/MIN) .535-140 HiViZ Tier 2 9812/7100
  • PUMP FITTINGS & MOUNTINGS (THREE STAGE, 110L/MIN) 535-125 HiViZ Tier 2 9812/7100
  • PUMP,(THREE STAGE) MAIN HYDRAULICS FITTINGS & MOUNTINGS 536-60 9812/7150
