Parker Hannifin

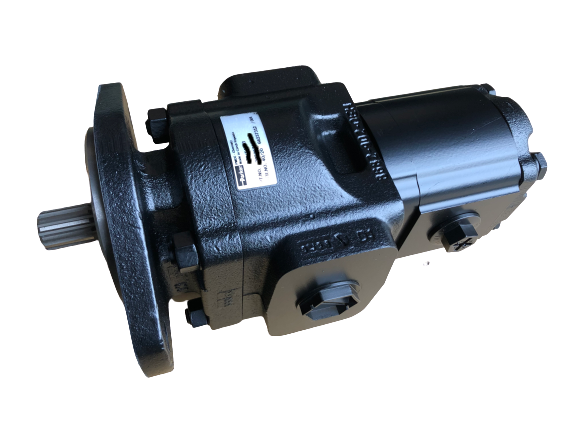

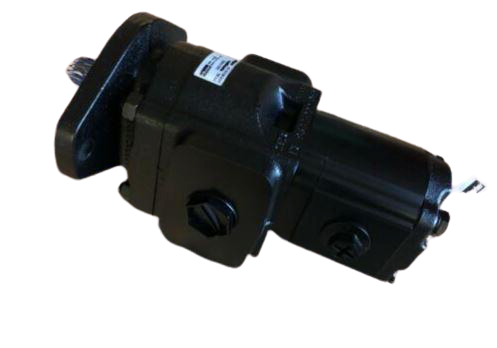

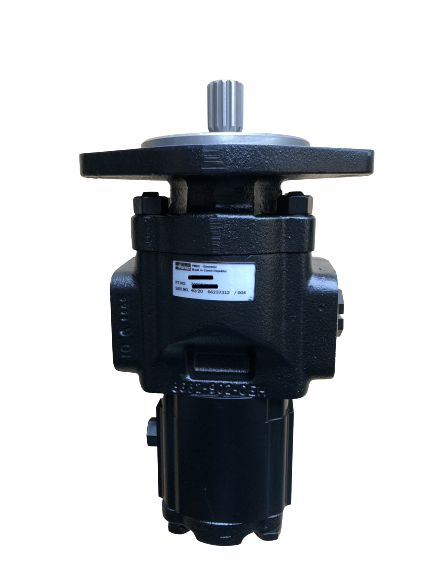

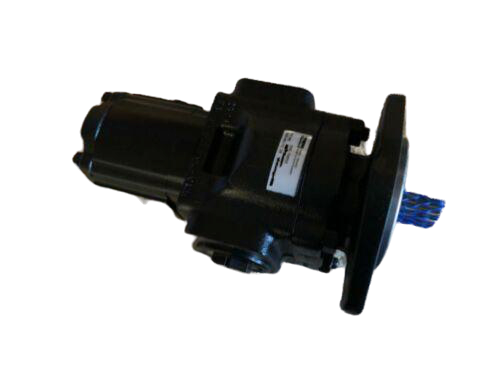

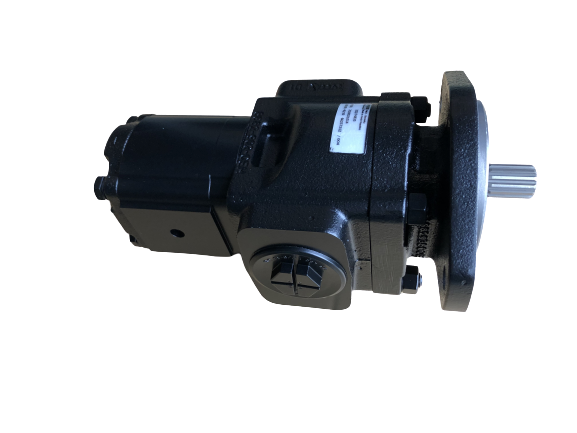

20/925498 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 37 + 14CC/REV

20/925498 Genuine Parker / JCB 524 /527 Twin Hydraulic Pump 37 + 14CC/REV

6 in stock

Regular price $1,155.52 CAD
Regular price $2,173.73 CAD Sale price $1,155.52 CAD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.

Key Information

  • Rotation: Clockwise (looking from shaft end)
  • 7/8” Diameter 13T SAE B splined shaft
  • SAE B 2 hole mounting flange
  • Front Pump displacement: 37 cc/rev (37L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (14L/Min per 1000 rpm)
  • 1 7/8" UNF threaded inlet
  • Front pump 1 1/16" UNF threaded outlet
  • Rear pump 7/8" UNF threaded outlet

Replaces the following JCB part numbers

  • 20/925498

Weight

  • 16KG

Machine Fitment

  • REAR TOW HITCH HYDRAULIC CIRCUIT 524-50 Tier 2 9812/7210
  • REAR TOW HITCH HYDRAULIC CIRCUIT 527-55S 9802/7220
  •  REAR TOW HITCH HYDRAULIC CIRCUIT 527-55 9802/7220
  • REAR TOW HITCH HYDRAULIC CIRCUIT 527-55S Tier 2 9812/7210
  • REAR TOW HITCH HYDRAULIC CIRCUIT 524-50 9802/7220
  • REAR TOW HITCH HYDRAULIC CIRCUIT 527-55 Tier 2 9812/7210
  • TOW HITCH HYDRAULIC CIRCUIT 524-50 9802/7220
  • TOW HITCH HYDRAULIC CIRCUIT 527-55S 9802/7220
  • TOW HITCH HYDRAULIC CIRCUIT 527-55S Tier 2 9812/7210
  • TOW HITCH HYDRAULIC CIRCUIT 524-50 Tier 2 9812/7210
  • TOW HITCH HYDRAULIC CIRCUIT 527-55 9802/7220
  • TOW HITCH HYDRAULIC CIRCUIT 527-55 Tier 2 9812/7210
  • TOW HITCH MANUAL CIRCUIT 527-55 Tier 2 9812/7210
  • TOW HITCH MANUAL CIRCUIT 527-55 9802/7220
  • TOW HITCH MANUAL CIRCUIT 527-55S Tier 2 9812/7210
  • TOW HITCH MANUAL CIRCUIT 527-55S 9802/7220
  • TOW HITCH MANUAL CIRCUIT 524-50 Tier 2 9812/7210
  • TOW HITCH MANUAL CIRCUIT 524-50 9802/7220
  • PUMP,GEAR,TANDEM 524-50 Tier 2 9812/7210
  • PUMP,GEAR,TANDEM 527-55S 9802/7220
  • PUMP,GEAR,TANDEM 527-55S Tier 2 9812/7210
  • PUMP,GEAR,TANDEM 527-55 Tier 2 9812/7210
  • PUMP,GEAR,TANDEM 524-50 9802/7220
  • PUMP,GEAR,TANDEM 527-55 9802/7220
