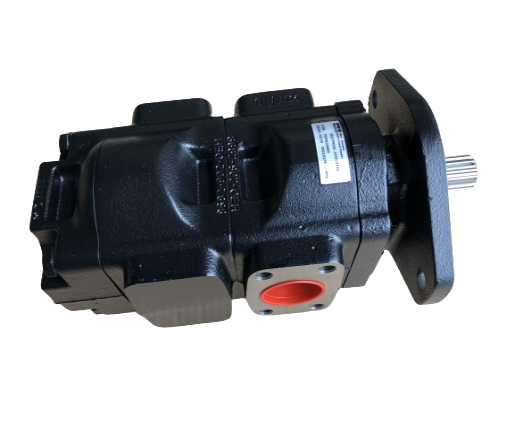

Key Information
- Rotation: Clockwise (looking from shaft end)
- 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
- SAE B 2 hole mounting flange
- Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
- Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
- Single 2” SAE flange inlet
- Front pump outlet: 1 1/16”-12 UNF threaded
- Rear pump outlet: 7/8”-14 UNF threaded
- Maximum working pressure on front pump: 275 bar
- Maximum working pressure on rear pump: 275 bar
- Max. Input shaft torque: 460 Nm
Weight
Replaces the following JCB part numbers
