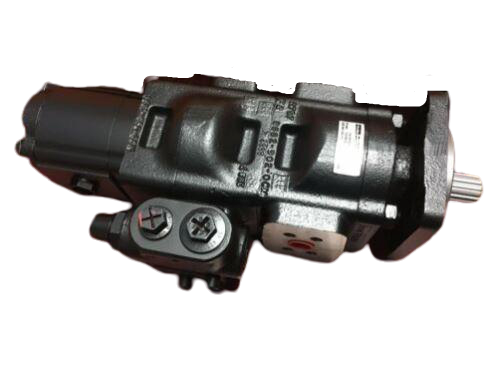

20/925355 Genuine Parker / JCB Loadall Triple Hydraulic Pump 36 + 19 + 16 CC/REV

20/925355 Genuine Parker / JCB Loadall Triple Hydraulic Pump 36 + 19 + 16 CC/REV

Low stock: 1 left

$2,377.08 CAD
$4,291.89 CAD $2,377.08 CAD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
 More payment options

Pickup available at 5 Shortheath Road

Usually ready in 2 hours

Key Information

  • Rotation: Counter -Clockwise (looking from shaft end)
  • 1” Diameter 15T SAE B-B splined shaft
  • SAE B 4 hole mounting flange
  • Front Pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Middle Pump displacement: 19 cc/rev (19L/Min per 1000 rpm)
  • Rear Pump displacement: 16 cc/rev (16L/Min per 1000 rpm)

Replaces the following JCB part numbers

  • 20/925591 - 8998S -7029530001

Weight

  • 38KG

Machine Fitment

  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 541-70M MILITARY 9812/7250
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 541-70 SWAY TIER 2 9812/7060
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 536-70 9812/7075
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 541-70 TIER 2 9812/7060
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 541-70 Tier 3 9812/7300
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 531-70 SWAY TIER 2 9812/7060
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 535-95 SWAY Tier 2 9812/7000
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 535-95 Tier 3 9812/7085
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 531-70 TIER 2 9812/7060
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN .536-70 9812/7075
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 531-70 Tier 3 9812/7300
  • PUMP,(THREE STAGE) MAIN HYDRAULICS 80 L/MIN 535-95 Tier 2 9812/7000
  • PUMP,(THREE STAGE) MAIN HYDRAULICS,AGS 125 L/MIN 535-95 Tier 3 9812/7085
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 3 STAGE, 80L/MIN 535-95 9822/0575
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 3 STAGE 531-70WM 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 3 STAGE 536-70AG+ 9822/0090
  • PUMP/MOTOR INSTALLATION ASSEMBLIES 3 STAGE 541-70WM ALL 541-70 MODELS 9822/0090
  • PUMPS GEAR 3 STAGE 536-70AG+ 9822/0090
  • PUMPS GEAR 3 STAGE 531-70WM 9822/0090
  • PUMPS GEAR 3 STAGE 536-60DS 9822/0090
  • PUMPS GEAR 3 STAGE 541-70WM ALL 541-70 MODELS 9822/0090
