Parker Hannifin

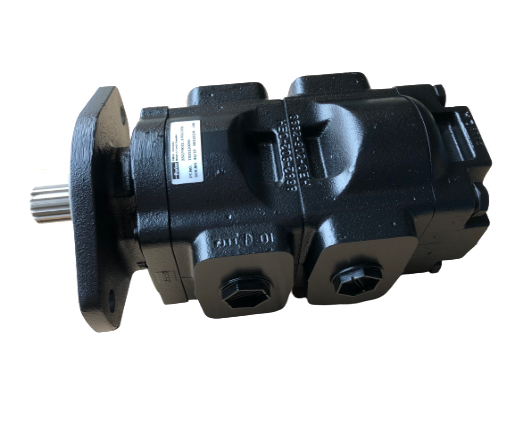

20/925339 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV

20/925339 Genuine Parker / JCB 3CX Twin Hydraulic Pump 36 + 26 CC/REV

123 in stock

Regular price $1,302.83 CAD
Regular price $2,785.10 CAD Sale price $1,302.83 CAD
Sale Sold out

PRICE EXCL. VAT

Looking for a pump to fit a specific machine? Click here. Alternatively, enter your machine number or OEM part number into the search bar above.
  • Worldwide shipping via trusted and reliable couriers.
  • Huge savings against OEM parts.
  • Need assistance? Contact our expert sales team.
Key Information
  • Rotation: Clockwise (looking from shaft end)
  • 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
  • SAE B 2 hole mounting flange
  • Front pump displacement: 36 cc/rev (36L/Min per 1000 rpm)
  • Rear pump displacement: 26 cc/rev (26L/Min per 1000 rpm)
  • Single 2” SAE flange inlet
  • Front pump outlet: 1 1/16”-12 UNF threaded
  • Rear pump outlet: 7/8”-14 UNF threaded
  • Maximum working pressure on front pump: 250 bar
  • Maximum working pressure on rear pump: 275 bar
  • Max. Input shaft torque: 460 Nm

Replaces the following JCB part numbers

  • 20/925339 - 20/925579 - 7029120006

Weight

  • 26KG

Machine Fitment

  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4T PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM 4TPC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX CONTRACTOR Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM-4 Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER MAN Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX-4WS PC Precision Control (Servo)- Sideshift 9802/9830
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX SUPER P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CXSM P/S Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR 92HP BUILDS M0953996 3CX MANUAL Sideshift 9802/9800
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 4C Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CXSM444 SUPER Centremount 9802/9810
  • PUMP, MAIN HYDRAULIC 36/26CCR M953996 3CX4WSSMPC Precision Control (Servo)- Sideshift 9802/9830
