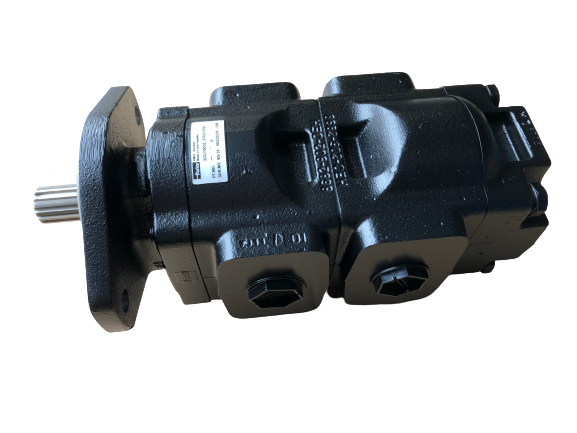

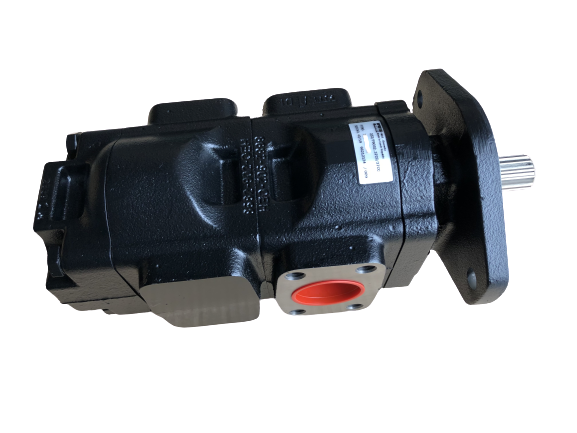

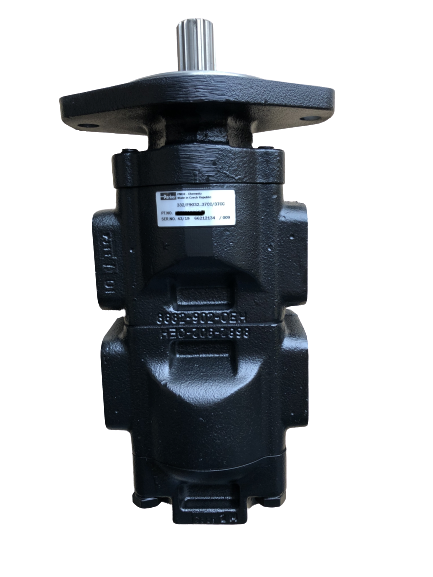

20/925337 Genuine Parker / JCB 3CX Twin Hydraulic Pump 29 + 23 CC/REV

• Rotation: Clockwise (looking from shaft end)
• 1” Diameter 15 tooth SAE splined shaft 16/32 Pitch
• SAE B 2 hole mounting flange
• Front pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
• Rear pump displacement: 23 cc/rev (23L/Min per 1000 rpm)
• Single 2” SAE flange inlet
• Combined Single pump outlet: 1 1/16”-12 UNF threaded
• Maximum working pressure on front pump: 275 bar
• Maximum working pressure on rear pump: 275 bar
• Max. Input shaft torque: 460 Nm

Weight

• 26KG

Replaces the following JCB part numbers

• 20/925337
