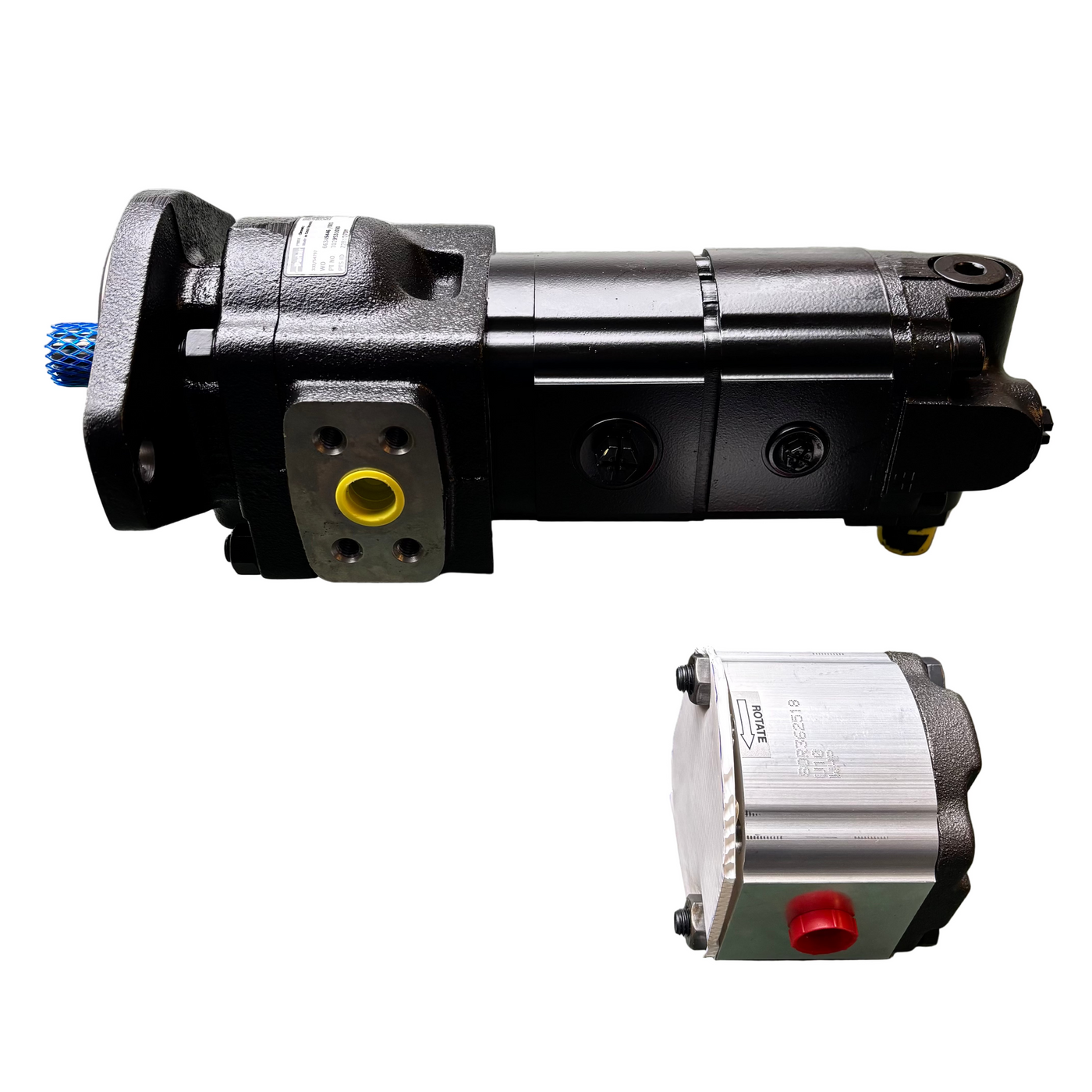

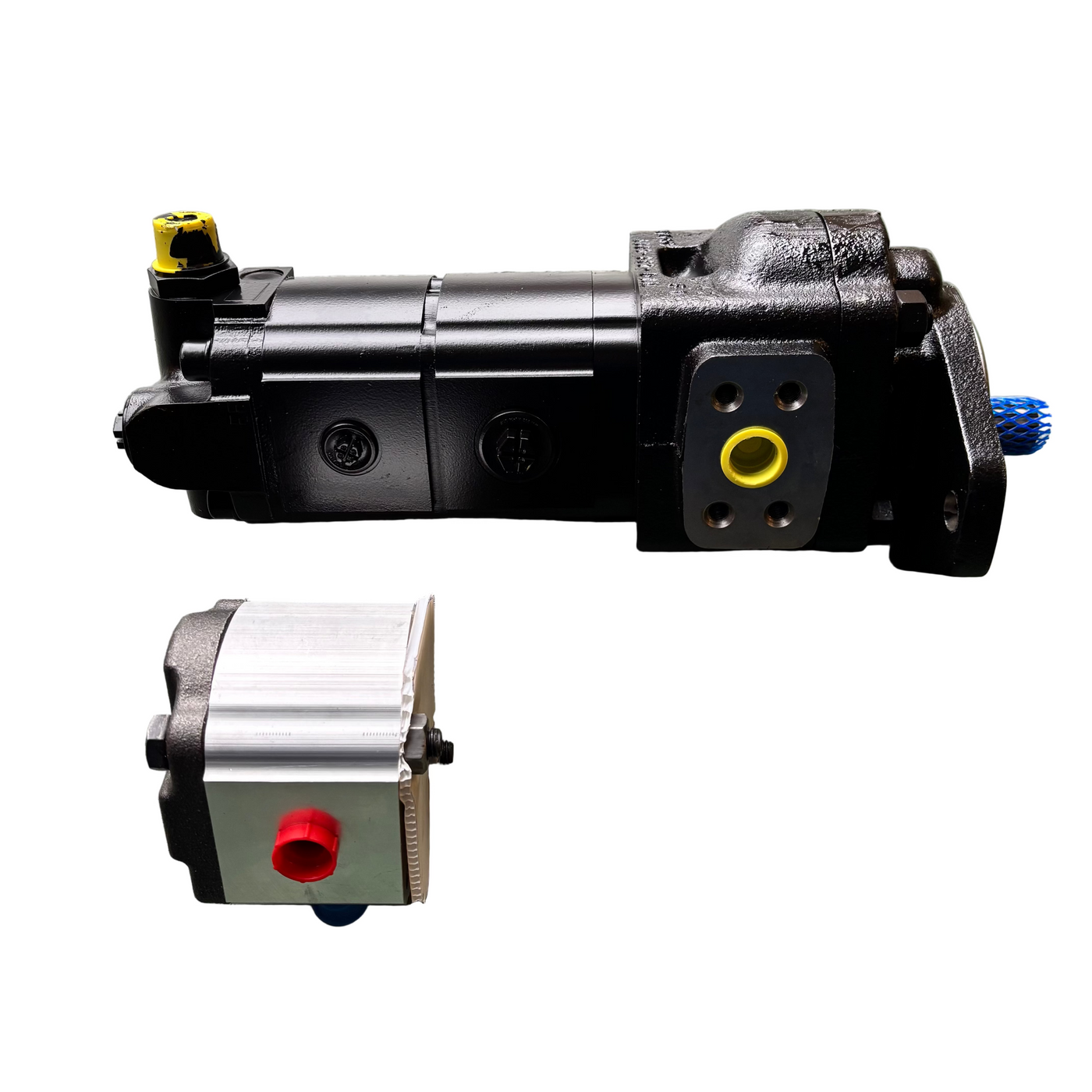

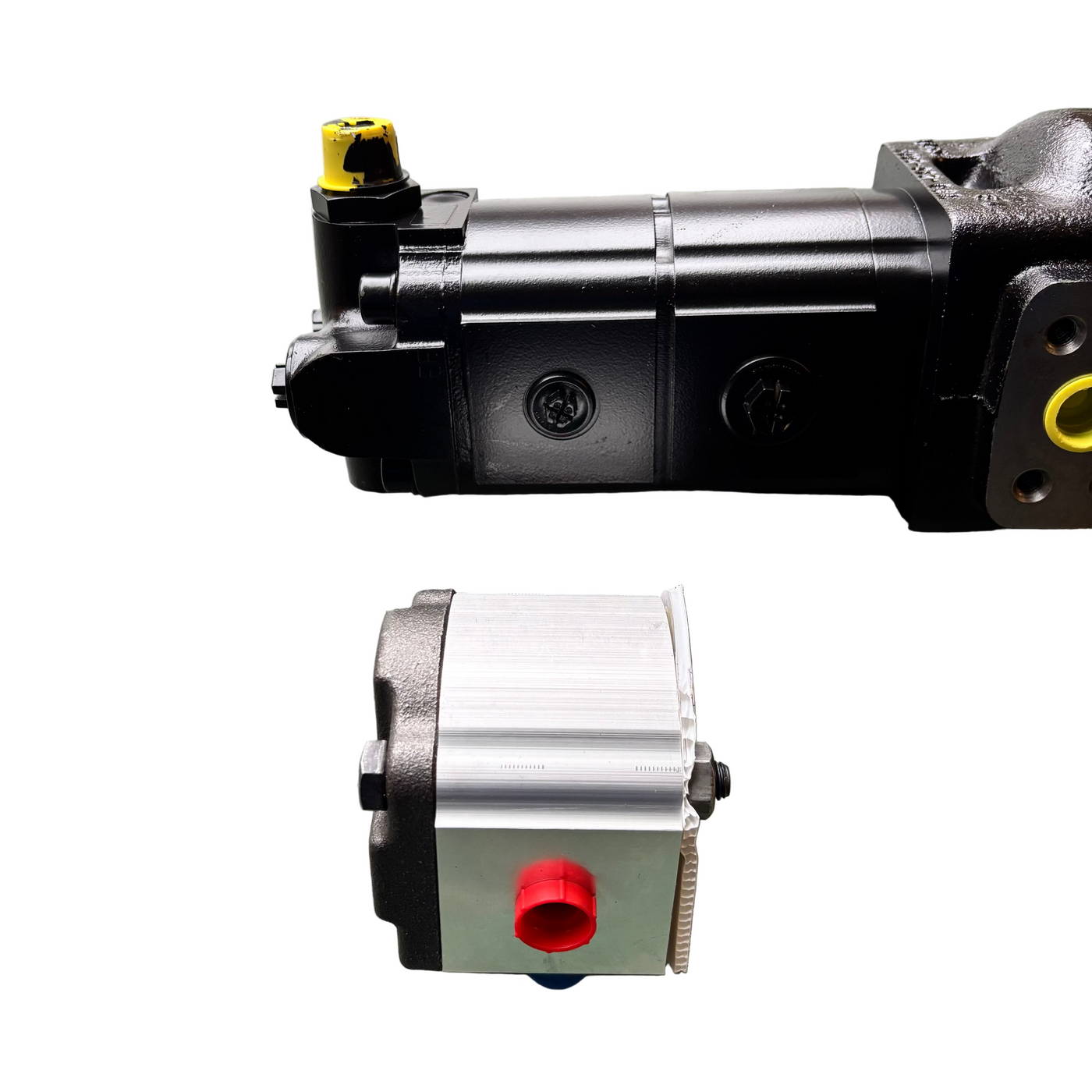

12cc Rear pump section 334/S2322 for JCB TLT ** W/O Test point port **
12cc Rear pump section 334/S2322 for JCB TLT ** W/O Test point port **
12cc Rear pump section 334/S2322 for JCB TLT ** W/O Test point port **
12cc Rear pump section 334/S2322 for JCB TLT ** W/O Test point port **
12cc Rear pump section 334/S2322 for JCB TLT ** W/O Test point port **
Parker Hannifin

12cc Rear pump section 334/S2322 for JCB TLT ** W/O Test point port **

OEM / cross-reference
334/S2322
$1,120.48 ex VAT$2,092.33 $1,344.57 inc VAT$2,510.79$1,344.57 inc VAT $1,120.48 ex VAT

Only 2 left in stock

Collection from our Derbyshire HQ by arrangement

Need 10+ or a bulk price? Request a quote

Delivery price

Live courier prices — the same as you'll see at checkout.

  • Order by 1pm for same-day dispatch (subject to stock availability)
  • Up to 50% saving against OEM parts
  • Technical support from our hydraulic engineers
Not sure it's the right part?

Our engineers will check it fits before you order.

01283 817 920

334/2322 Hydraulic Pump section ** without test point **

Key Information.

Pump displacement: 12 cc/rev

Replaces rear pump section for the following JCB part numbers

333/W2430

333/W2431

333/S7584

332/S9644

333/S7578

332/S4797

PRODUCTS AFFECTED:
TLT 25D (Serial no's 01539000 - 01541999)
TLT 30D (Serial no's 01539000 - 01541999)
TLT 30D 4x4 (Serial no's 01539000 - 01541999)
TLT 35D (Serial no's 01539000 - 01541999)
TLT 35D 4x4 (Serial no's 01539000 - 01541999)



Weight

  • 5KG

When reassembling pump 4 x bolts torque to 48Nm +/- 4Nm

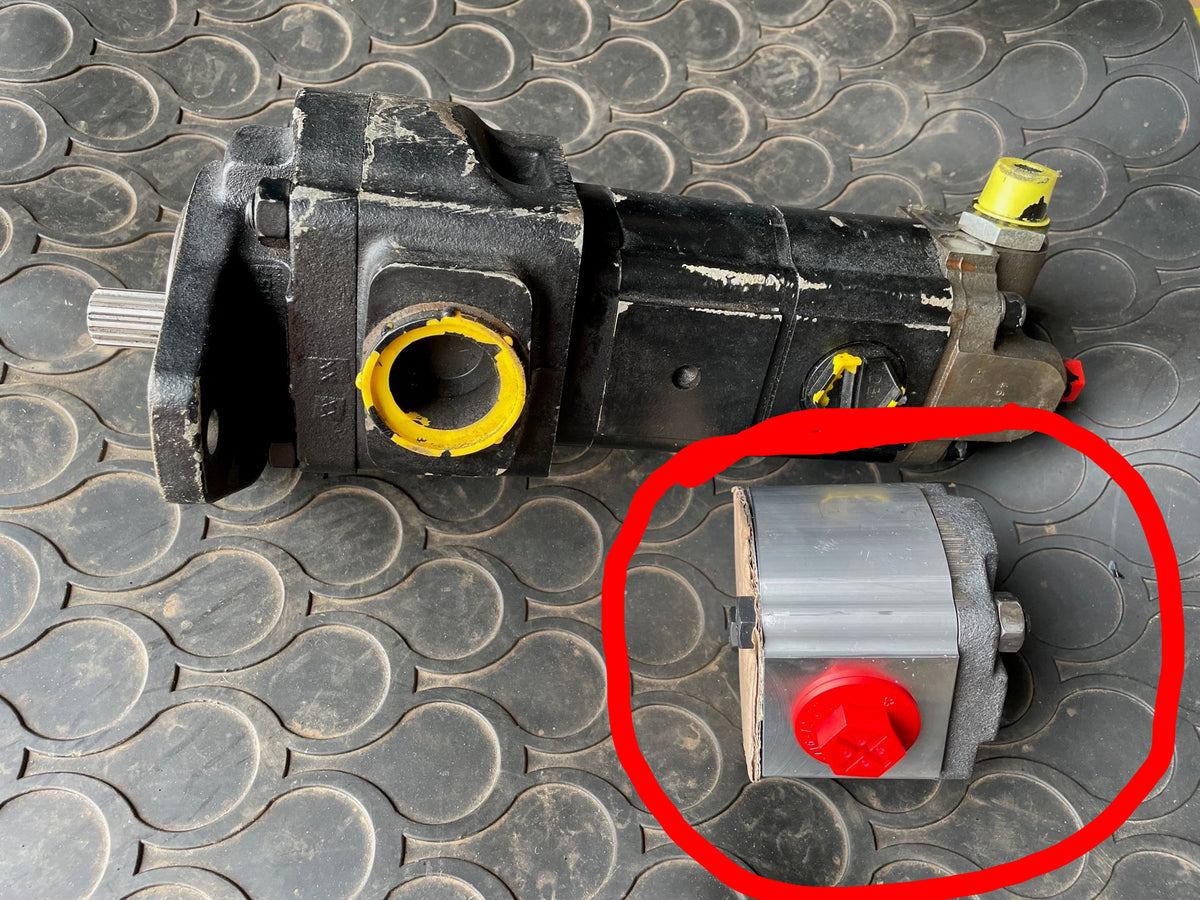

IMPORTANT NOTE These pumps seem to be a common failure point on JCB telehanders . We can also offer the no cost option of removing the 9/16"UNF test point port - which is where the casting seems to crack. Please contact our sales department if you wish to order a pump without the test point port - Delivery will be around 7 working Days
